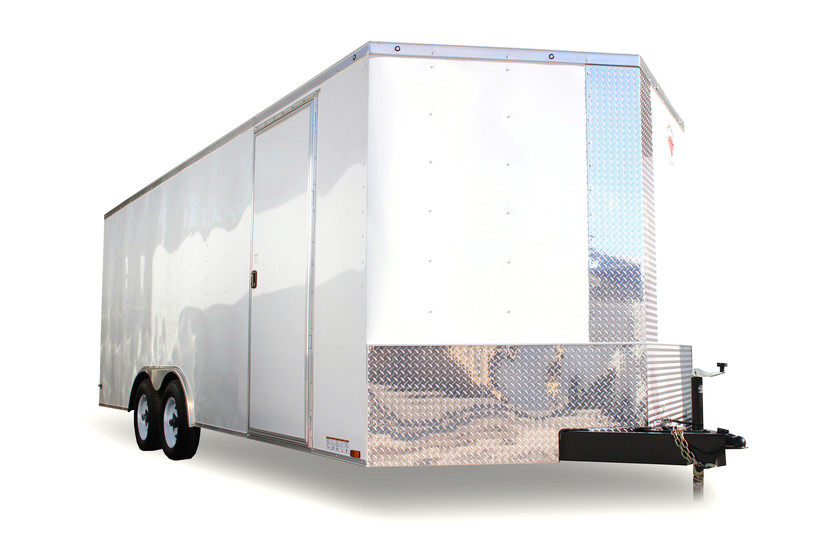

Diamond Cargo 8.5x20 Tandem Axle - Ramp Door

Construction

• 16" On Center Cross Members
• 16" On Center Tubing Sidewalls
• 24" On Center Tubing Roof Members
• 3/4" Plywood Floors
• 3/8" Plywood Walls
• 6" Steel Tube Main Frame

Components

• 2-5/16" Coupler
• 6'6" Interior Height

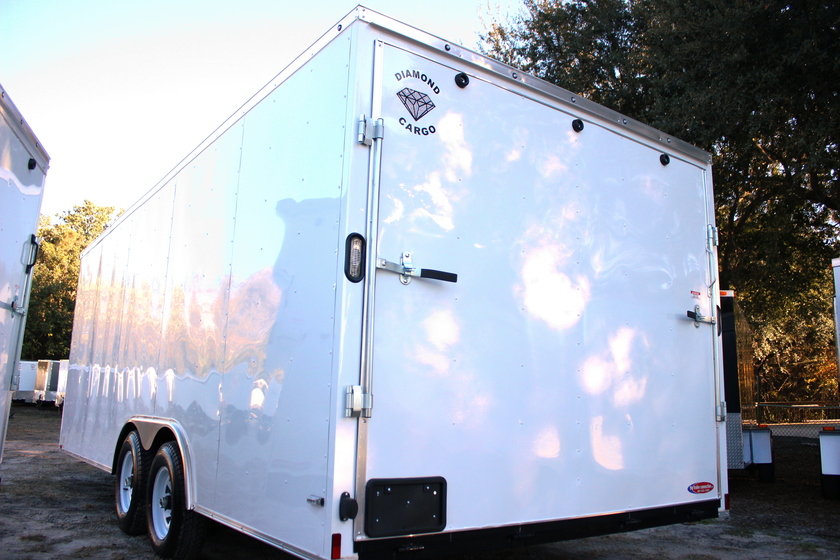

• Ramp Rear Door

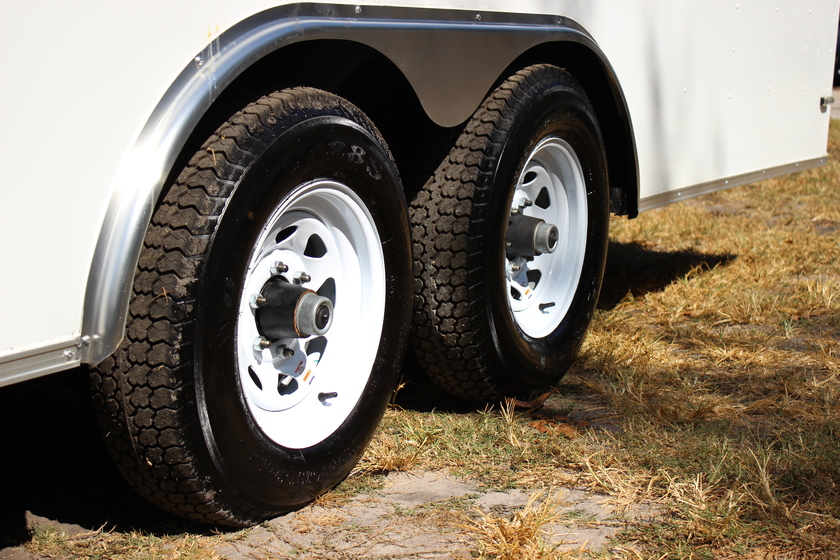

• White Spoke, Black Modular or Silver Modular Wheels
• ST205/75 15" Radial Tires
• Sealed 7-Way Pigtail
• Galvalume Roof
• Flow-Through Sidewall Vents
• Leaf Spring Suspension
• (2) 3,500 lb. Axles
• Electric Brakes On All 4 Wheels
• E-Z Lube Spindles
• 32" Side Door With Flush Lock Assembly

Exterior

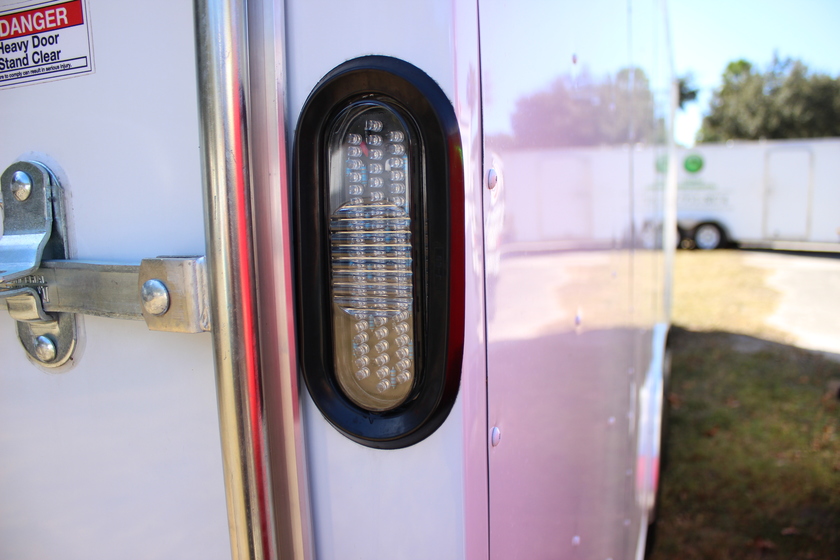

• All LED Lights
• Semi-Screwless Exterior With Color-Matched Fasteners
• 24" Stone Guard

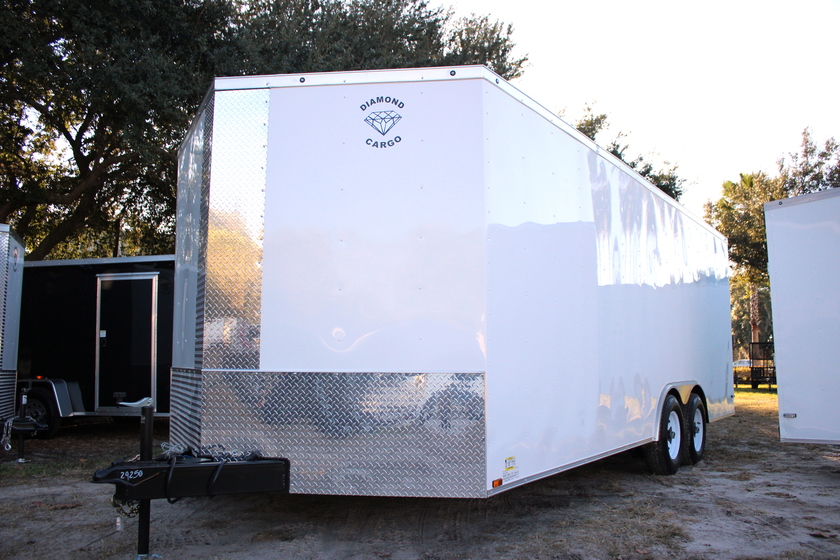

• V-Nose With Aluminum Tread Plate
• Smooth Aluminum Fenders

Interior

• Length - 19'10"
• On-Center - 21'10"
• Width - 7'11"
• Height - 6'5"

Exterior

• Length - 25'2"
• Width - 8'6"
• Height - 8'2"

• Black ATP Stoneguard
