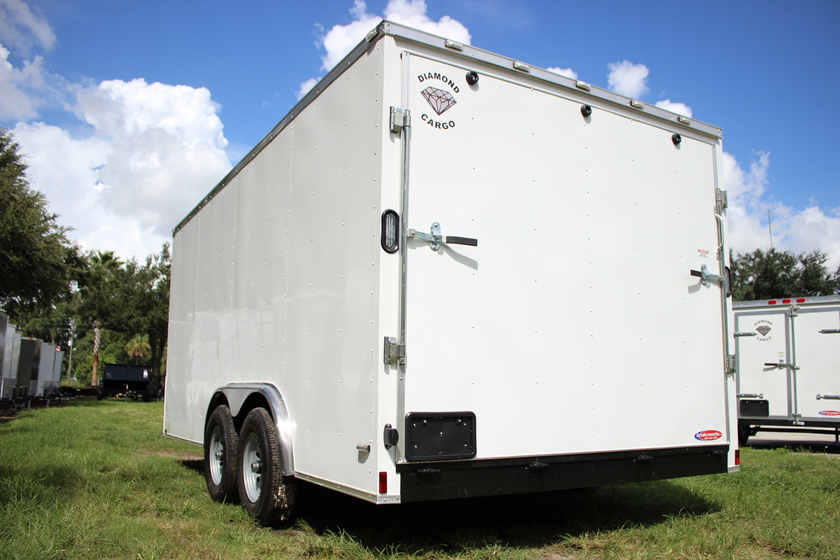

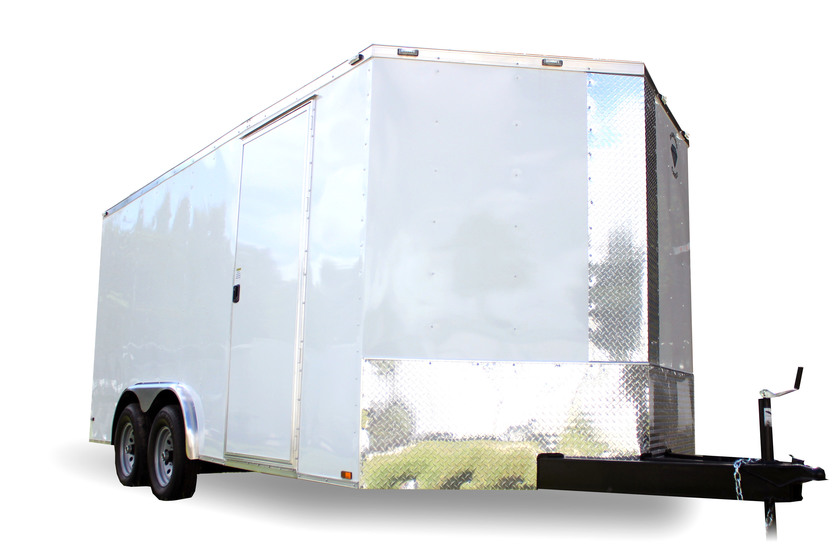

Diamond Cargo 8.5' x 16' Tandem Axle - Commercial Grade

Construction

• 12" On Center Cross Members
• 16" On Center Tubing Sidewalls
• 24" On Center Tubing Roof Members
• 3/4" Plywood Floors
• 3/8" Plywood Walls
• 6" Steel Tube Main Frame Rails

Components

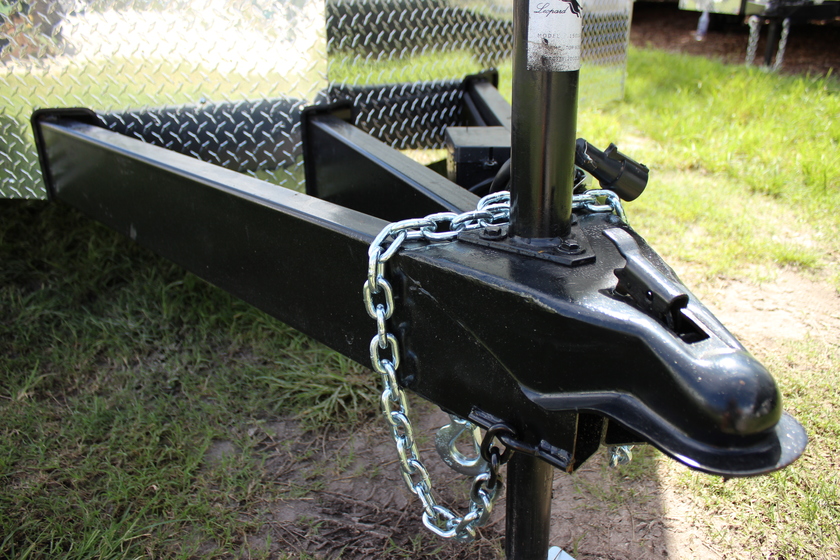

• 2-5/16" Coupler
• 6'6" Interior Height

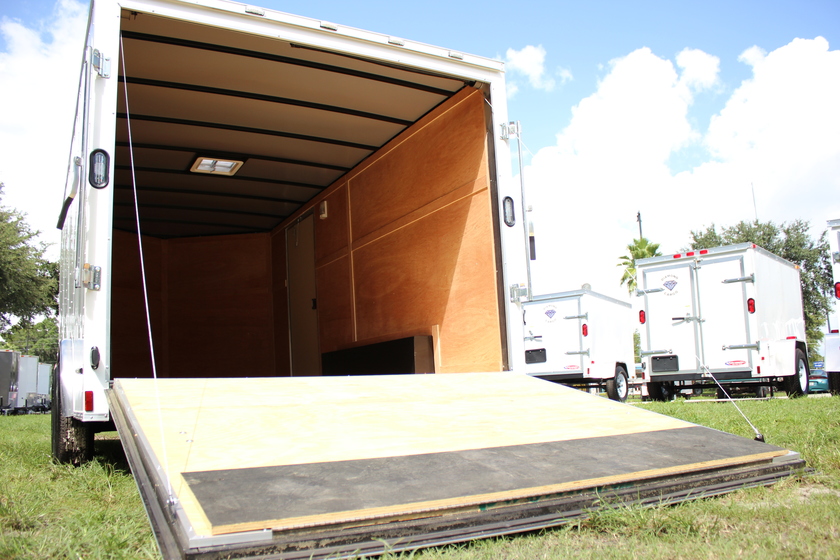

• Ramp Rear Door
• White Spoke, Black Modular or Silver Modular Wheels
• ST225/75 15" 6-Lug Radial Tires
• Sealed 7-Way Pigtail
• Galvalume Roof
• Sidewall Vents
• Independent Torsion Suspension
• (2) 5,200 lb. Axles
• Electric Brakes On All 4 Wheels
• E-Z Lube Spindles
• 36" Side Door With Flush Lock Assembly

Exterior

• All LED Lights
• Semi-Screwless Exterior With Color-Matched Fasteners
• 24" Stone Guard

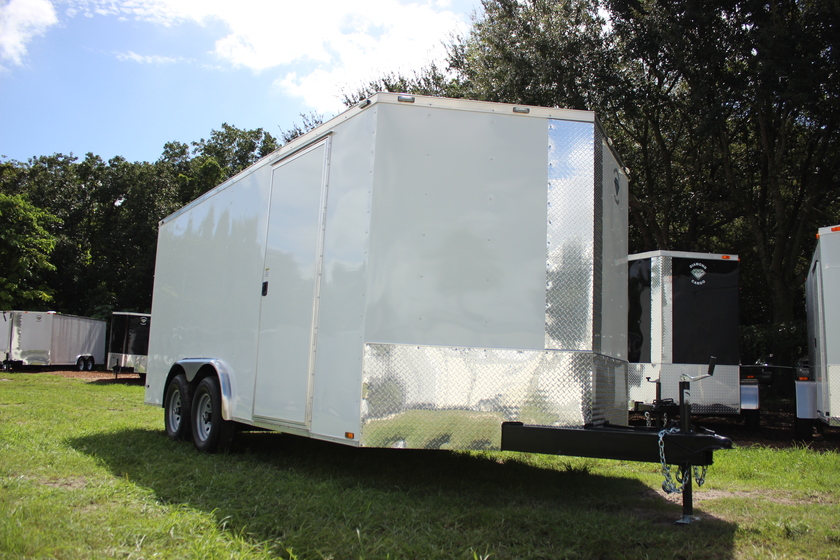

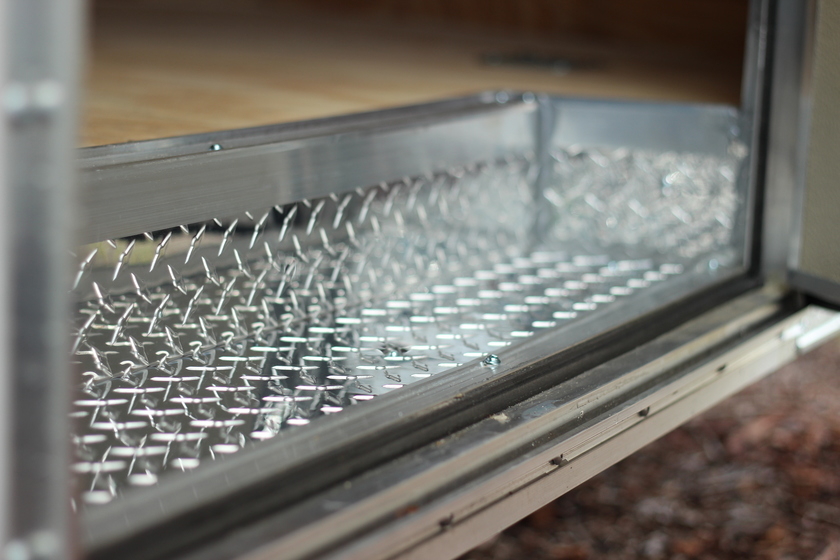

• V-Nose With Aluminum Tread Plate
• Smooth Aluminum Fenders

Interior

• Length - 15'10"
• On-Center - 17'10"
• Width - 7'8"
• Height - 6'5"

Exterior

• Length - 21'2"
• Width - 8'8"
• Height - 8'2"

• (2) 5,200 lb. Tandem Axles
• Independent Torsion Suspension
• .030" Exterior Skin
• Extended Triple Tube Tongue
• 12" On-Center Floor Crossmembers
• Thermacool Ceiling Liner
